The major subsystems, including the cover, the imager, its filter wheel, the cube mirror, and the heaters are discussed below.
The CFI optics are protected during launch by a one-time deployable cover. The cover is deployed by High Output Paraffin (HOP) actuators. There are two HOP actuators; each actuator has two heaters. Any one of the four heaters should be sufficient to release the cover. Each heater can be commanded on independently (CFI_COV_MODE and CFI_COV_DEPLOY). A mechanical switch provides a telltale that indicates that the cover mechanism has activated.
The imaging subsystem, from the CCD to the software, normally operates
at a 1 Hz cadence. A simplified timing diagram of the CCD is shown
below. The figure shows two seconds elapsing, i.e. two images being
exposed. CCD operations are synchronized to a 1 Hz system clock. The
internal CFI 1 Hz clock lags the system-wide clock by ~7 ms. Image
exposures vary in length, but always end ~40 ms before the next CFI 1
Hz pulse. For science imaging, the exposure time will normally be
under 1 second. However, additional seconds of exposure time can be
commanded, for example, to do comet coma imaging. The figure shows a
normal exposure followed by a minimum length "scrub" exposure. Scrub
exposures are used to fill in time whenever no real image is needed.
This ensures that the CCD is read out every second. The CCD is a
frame-transfer device: at the end of an exposure, the image is rapidly
transferred into a buffer within the CCD. Then the buffered image is
read out of the CCD while the next image is being exposed. The DPU
adds an image header provided by the DPU software. The read out of the
entire image must be complete before the end of the exposure. The time
between the end of exposure and the next CFI 1 Hz pulse is used by the
software to configure the image read out (e.g., load the header data)
and setup the next exposure.

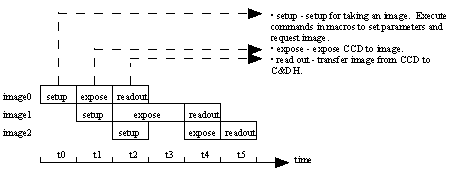

Each image collected requires three processing steps. Each step takes
one second, but the process can be pipelined such that one image is
taken every second. The resulting three-stage pipeline is shown
below. For multisecond exposures, the expose stage is stretched out
and subsequent processing stages are delayed.
For purposes of command planning, only the first two image processing
stages are relevant. During setup, commands are executed to configure

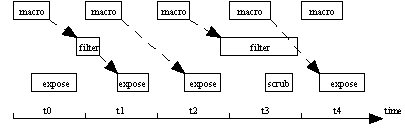

image collection in the following stage. The following figure shows an
example image taking sequence. The commands that control the sequence
are being issued from macros; macros execute at the beginning of each
second. A take image command
(CFI_IMG_IMAGE)
executed in t will cause
the CCD to be exposed in t+1. Similarly, commands to set the exposure
time
(CFI_IMG_EXP)
and select the filter wheel
(CFI_FLT_MOVE)
that
execute in t will take effect in t+1. Filter wheel movements begin at
the end of exposure; ensuring that the movement is complete before the
next exposure is the responsibility of the macro and thus the macro
author.

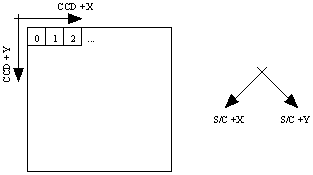

The following figure relates the image on the CCD with the spacecraft's
coordinate system. The numbers on the pixels in the figure indicate
the order in which they are downlinked. Each pixel is 12 bits.
CFI images come in six possible formats shown in the table below. The
format is selected by command
(CFI_IMG_FORMAT).
The formats range from
the full size of the CCD (1024x1024) down to smaller and smaller
windows into the full image. A command
(CFI_IMG_REGION)
selects the
origin of the window. Alternatively, the entire 1024x1024 image can be
rebinned into 512x512 or 256x256 images. The rebinning is done
directly in the CCD while the windowing is done by downstream logic.
In all of the formats, each line has an additional four dark
calibration pixels and a line of temperatures at the end of the image.
Every data item in the image can be compressed from 12 bits to 8 bits
if enabled by command
(CFI_IMG_COMP_MODE).
The compression is done via
table lookup in hardware; one of eight tables can be selected by
command
(CFI_IMG_COMP_ALG).
Any of these commands executed at time
t affect the image exposed at time t+1.
Mode | Pixels/line | Lines | Temperatures |
---|---|---|---|
1024 x 1024 | 4 cal + 1024 pixels | 1024 | 4 cal + 1024 temps |
512 x 512 window | 4 cal + 512 pixels | 512 | 4 cal + 512 temps |
256 x 256 window | 4 cal + 256 pixels | 256 | 4 cal + 256 temps |
128 x 128 window | 4 cal + 128 pixels | 128 | 4 cal + 128 temps |
512 x 512 rebinned | 4 cal + 512 pixels | 512 | 4 cal + 512 temps |
256 x 256 rebinned | 4 cal + 256 pixels | 256 | 4 cal + 256 temps |
Images are downlinked with a header describing the state of the
instrument at the time the image was taken. The header starts with the
time at which the image was exposed and a snapshot of the current
DPU status.
For multi-second images, the header corresponds to the last
second of exposure. The header format is shown below:
Name | Length (bits) | Value | Description |
---|---|---|---|
Time Tag | 32 | Unsigned integer | Spacecraft MET of exposure |
Analog | 34 * 16 | See Table 8 | Analog status |
Digital | 14 * 16 | See Table 9 | Digital status |
Software | 28 * 8 | See Table 10 | Software status |
Spare | 896 * 8 |   |   |
The DPU software monitors the Focal Plane Unit's (FPU) latch-up indicator. If latch-up is detected, the DPU suspends FPU operations. The length of the suspension is set by an uploadable parameter.
The filter wheel is controlled by a stepping motor. The motor phases are controlled directly by the DPU software to move the filter wheel. The phase pattern can be adjusted by software to move the filter wheel forwards or backwards. A resolver provides an absolute position reading of the wheel.
The filter move command
(CFI_FLT_MOVE)
uses the commanded filter number
to look up an absolute goal position from a table, reads the current
position from the resolver, and computes the number of steps and travel
direction needed to arrive at the goal in the least amount of time.
The motor is then stepped to the desired goal. Alternatively, the
filter step command
(CFI_FLT_STEP)
will move the filter wheel the
commanded number of resolver counts forward or backward. The power to
the resolver can be commanded on or off
(CFI_FLT_PWR).
If the power to
the resolver is turned off, further move commands will be dead-reckoned
from the last resolver reading. The filter wheel is characterized by
several
uploadable parameter
including the motor power level, the
scale factor between resolver counts and motor steps, the filter wheel
positions, etc. The filters are listed in the following table.
Filter Number | Spectral Band (nm) | Use |
---|---|---|
1 | "clear" | Navigation |
2 | 920 | Geology |
3 | 840 | Geology |
4 | 620 | Red (geology) |
5 | 445 | Blue (geology) and backup continuum |
6 | 526 | Green (geology) and C2 continuum |
7 | 514.1 | C2 emission (coma) |
8 | 309 | OH emission (coma) |
9 | 344.8 | OH and CN continuum |
10 | 387 | CN emission (coma) |
The mirror move command (CFI_MIR_MOVE) uses the commanded mirror side to look up an absolute goal position from a table, reads the current position from the resolver, and computes the number of steps needed to arrive at the goal traveling in a preferred direction. The motor is then stepped to the desired goal. Alternatively, the mirror step command (CFI_MIR_STEP) will move the mirror the commanded number of resolver counts forward or backward. The power to the resolver can be commanded on or off (CFI_MIR_PWR). If the power to the resolver is turned off, further move commands will be dead-reckoned from the last resolver reading. The mirror is characterized by several uploadable parameter including the motor power level, the scale factor between resolver counts and motor steps, the mirror side positions, and the preferred move direction.
The CFI DPU controls the temperature of the radiator used to cool the CCD. The heater may be commanded off, on, or controlled by software (CFI_HTR_MODE). If the heater is being controlled by software, it uses the setpoint and hysteresis commanded (CFI_HTR_TMP). The software uses one of four temperatures sensors to control the heater; the sensor used is commandable (CFI_HTR_SENSOR). Every second the selected temperature is compared against the limits. If the temperature is too low, the heater will be turned on. If the temperature is too high, the heater will be turned off.
The CFI DPU monitors the CONTOUR Hardware Experimental Acquisition Package (CHEAP). CHEAP contains three experiments: digital solar attitude detectors, a dust shield monitor, and a dosimeter. These are described below. Because of CHEAP's experimental nature, commands are provided for doing raw reads and writes to the hardware (CFI_CHE_PEEK and CFI_CHE_POKE). CHEAP is present as a flight test and is not an operational part of CONTOUR.
The CFI DPU controls two Digital Solar Attitude Detector (DSAD) imagers. Each device has a 200 x 200 pixel array; each pixel is ten bits. The only difference between the DSADs is that one views space through a pinhole and the other views space through a lens. Image collection is controlled via command (CFI_SAD_IMAGE). Another command (CFI_SAD_EXP) sets the exposure time for each device.
The CFI DPU monitors degradation of the spacecraft's dust shield. Sixteen measurements are taken over different regions of the dust shield; each measurement is ten bits. Data collection is controlled via command (CFI_DUS_DATA).
The CFI DPU monitors the total radiation dose that the spacecraft receives. A single ten-bit dosimeter measurement is taken on command (CFI_DOS_DATA).
